The impellers are thought to be employed in applications that require the highest rotation speeds and low noise levels. A typical application suitable for our Q bladed fans is compressors.
230 - 750 mm

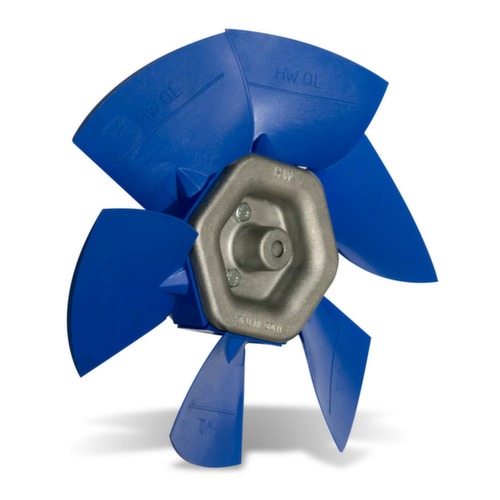

20°-50° T -40° C to +140° C° Q impellers are manufactured assembling fixed pitch sickle profile blades with a light aluminum alloy hub. The impellers are thought to be employed in applications that require the highest rotation speeds and low noise levels. The impellers are available in confi gurations with 6/8/10/14 blades both for clockwise and anticlockwise rotation. Q blades are available with right or left fixed setting angles ranging from 20° to 50°. Q impellers can produce a sucking or blowing air flow.
Q are available in plastics, and ATEX materials to suit a variety of applications which require different temperatures and rotation speeds.
Q impellers are manufactured assembling fixed pitch sickle profile blades with a light aluminum alloy hub. The impellers are available in configurations with 6/8/10/14 blades both for clockwise and anticlockwise rotation. Q blades are available with right or left fixed setting angles ranging from 20° to 50°. Q impellers can produce a sucking or blowing air flow.
| Material | Description | Color | Op. temperature |
|---|---|---|---|
| PPG | Glass Reinforced Polypropylene (PP 30% glass) | From -20°C to +85°C | |
| PAG | Glass Reinforced Polyamide (PA6) | From -40°C to +120°C | |
| RYT | Ryton | From -50°C to +200°C | |
| PAA (ATEX) | Antistatic Polyamide | From -40°C to +120°C | |
| PAX (ATEX) | Antistatic, Self extinguishing PA | From -40°C to +120°C | |
| PAM (ATEX) | Antistatic, Self extinguishing, Magnetically shielded PA | From -40°C to +120°C |
